采用5.7英寸（120×90）PLC多彩液晶觸控顯示屏，中文菜單顯示。公稱規格、管壁、跨度、設定載荷、最大撓度、打印設定、測試、上行、下行、時間、標定。由鍵盤控制液晶顯示屏上的菜單，機載打印測試數據。 GX-9626-D醫用注射針管（針）剛性測試儀完全符合GB18457《制造醫療器械用不銹鋼針管》、GB15811《一次性使用無菌注射針》標準中相關條款設計制造；管壁：正常壁、薄壁、超薄壁三種任選；

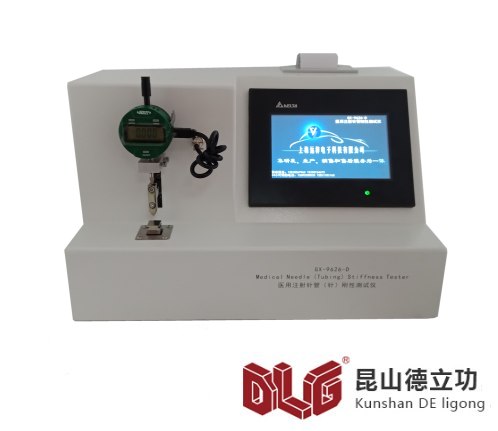

It adopts 5.7 inch (120 *90) PLC multi-color LCD touch screen and Chinese menu display. Nominal specification, pipe wall, span, set load, maximum deflection, print setting, test, up, down, time and calibration. The menu on LCD screen is controlled by keyboard, and the test data is printed on board. The Medical Needle (Tube) Stiffness Tester of GX-9626-D fully conforms to the relevant provisions of GB18457 "Stainless steel needle tube for manufacturing medical instruments" and GB15811 "disposable sterile injection needle" standards.

公稱規格：0.2～3.4mm;

設定荷載： 1.2～60N，  精度：±1%；

加載速率：加載到設定值時其速度為1mm/min;  跨 度：5～50mm

精度：±0.1mm(11種規格)；

撓度測試：0～0.8mm，精度：±0.01mm；

打印方式：每次可打印8次、13次或20次

試數據及平均撓度值和偏差值。

凈重：20kg  外形尺寸：400×290×240（mm）

Nominal specification: 0.2-3.4 mm;

Setting load: 1.2-60N, accuracy: +1%;

Loading rate: 1 mm/min when loading to set value; span: 5-50 mm

Accuracy: +0.1mm (11 specifications);

Deflection test: 0-0.8mm, accuracy: +0.01mm;

Printing mode: 8, 13 or 20 times each time.

Test data and average deflection and deviation values.

Net weight: 20kg shape size: 400 x 290 x 240 (mm)
