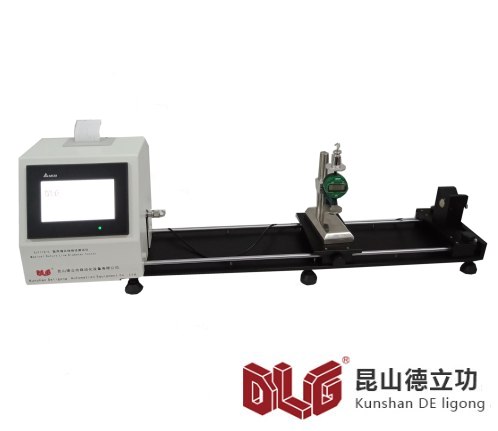

采用5.7英寸（120×90）PLC多彩液晶顯示屏，中文菜單顯示。公稱規格、試驗載荷、打印、測試、左行、右行、時間、標定。由鍵盤控制液晶顯示屏上的菜單，砝碼加載張力，自動記錄線徑數據，自動輸出數據報告，機載打印測試數據，XJ1116-D醫用縫合線線徑測試儀根據YY1116-2010《可吸收性外科縫線》和YY0167-2005《非吸收性外科縫線》中有關線徑測試的條款設計制造，用于測試線徑的專用設備。

公稱規格：12-0……5  所有Ⅰ、Ⅱ類醫用縫合線。

It adopts 5.7 inch (120 *90) PLC multi-color LCD display screen and Chinese menu display. Nominal specification, test load, printing, testing, left line, right line, time and calibration. The menu on the LCD screen is controlled by the keyboard, the tension is loaded by the weight, the diameter data is recorded automatically, the data report is output automatically, and the test data is printed on the airplane. According to YY1116-2010 "Absorbable surgical suture" and YY0167-2005 "Non-absorbable surgical suture", the XJ1116-D medical suture diameter tester can measure the diameter of suture. Design and manufacture of special equipment for testing line diameter.

公稱規格：12-0……5  所有Ⅰ、Ⅱ類醫用縫合線。

線徑測量分度：0.002mm。壓腳直徑：12.7±0.02 mm；基準面直徑：50 mm。

壓腳與基準面平整度：不大于±0.005mm。

壓腳與基準面平行度：不大于千分之一。

加載砝碼：0～2Kg， 精度：±0.1g

壓腳載荷：210g±3g。

打 印 方 式：可打印3點（線1/4、1/2、3/4位置）測量測試數據及平均值，可打印10次測試平均值及其總平均值和偏差值。

凈重：38kg   外形尺寸：320×1200×280（mm）

部分清單：

1.主機一臺   2.打印紙1卷  3.夾具一套   4.砝碼一套  5.質保一年

6.操作說明 7.儀器終身免費依國家標準規定升級服務

Nominal Specification: 12-0... 5 All Class I and II medical sutures.

Line diameter measurement scale: 0.002 mm. Pressure foot diameter: 12.7 +0.02 mm; datum diameter: 50 mm.

Pressure foot and baseline surface smoothness: not more than <0.005mm.

The parallelism between the foot and the base plane is not more than one thousandth.

Loading Weight: 0-2Kg, Accuracy: +0.1g

Pressure foot load: 210 G + 3 g.

Printing method: It can print 3 points (line 1/4, 1/2, 3/4 position) test data and average value, and print 10 times test average value, its total average value and deviation value.

Net weight: 38kg shape size: 320 *1200 *280 (mm)

Part of the list:

1. A mainframe 2. Printing paper 1 roll 3. Fixture set 4. Weight set 5. Quality guarantee for one year

6. Operational instructions 7. Free upgrade service of instrument in accordance with national standards for life
