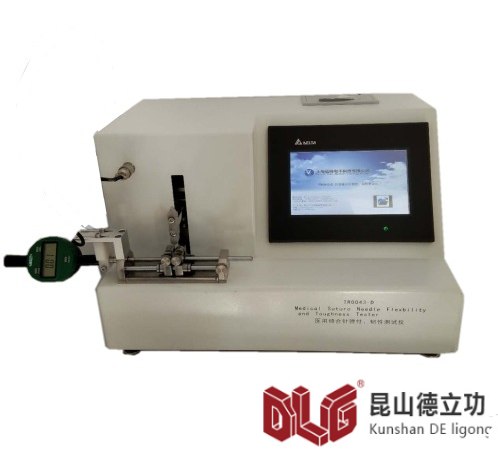

采用5.7英寸（120×90）PLC多彩液晶顯示屏，中文菜單顯示。公稱規格、試驗變形量、試驗項目、打印、測試、上行、下行、時間、標定。由鍵盤控制液晶顯示屏上的菜單，自動控制變形量，機載打印測試數據，彈性、韌性測試夾具更換方便，彈性測試自動完成。

醫用縫合針彈性、韌性測試儀完全符合YY0166-2002《帶線縫合針》和 YY0043-2016《醫用縫合針》的標準設計制造。

It adopts 5.7 inch (120 *90) PLC multi-color LCD display screen and Chinese menu display. Nominal specifications, test deformation, test items, printing, testing, upstream, downstream, time and calibration. The menu on LCD is controlled by keyboard, the deformation is controlled automatically, the test data is printed on board, the fixture for elasticity and toughness test is replaced conveniently, and the elasticity test is completed automatically.

The elasticity and toughness tester of medical suture needle fully conforms to the standard design and manufacture of YY0166-2002 "suture needle with thread" and YY0043-2016 "medical suture needle".

公稱范圍：0.2～1.3mm; 12 mm≤L﹤80 mm

變形分辨力：0.01mm。 控制變形速率：0.01 mm /s～1 mm /s

打印方式：每次可打印10次測試結論。 凈重：11kg

外形尺寸：400×290×260（mm）

部分清單：

1.主機一臺2.打印紙1卷3.夾具一套4.砝碼一套5.質保一年

6.操作說明7.儀器終身免費依國家標準規定升級服務

Nominal range: 0.2-1.3 mm; 12 mm < L < 80 mm

Deformation resolution: 0.01mm. Controlling Deformation Rate: 0.01 mm/s~1 mm/s

Printing method: 10 test conclusions can be printed at a time. Net weight: 11kg

Shape size: 400 x 290 x 260 (mm)

Part of the list:

1. A mainframe 2. Printing paper 1 roll 3. Fixture set 4. Weight set 5. Quality guarantee for one year

6. Operational instructions 7. Free upgrade service of instrument in accordance with national standards for life
